How to add NGINX Ingress controller in your local k8s

After for the umpteenth time type the command port-forward I noticed that I had to use Ingress 😜 and avoid the famous DRY (Don’t Repeat Yourself).

Disclaimer → Is not wrong use port-forward command, but if you can don’t remember it, looks great.

Assumptions → You’re familiar with docker and has installed the softwares below.

For this tutorial I’m using the following softwares

• Docker
• Kubernetes
• Helm
• Kind

In terms of deploy, I’m using an application built with Quarkus, with 2 endpoints, /resteasy-jackson/quarks and /hello-resteasy. The image is available on my Docker hub.

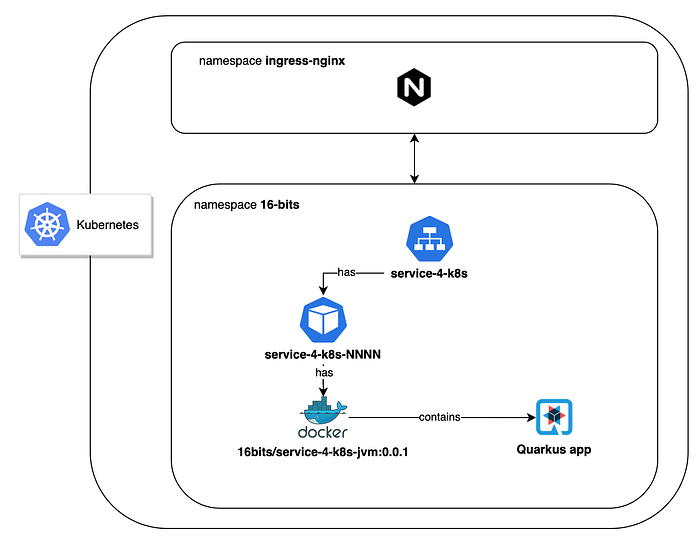

This is an overview of those piece together, and let’s analyse how configure them.

16-bits diagram

1. Create a cluster using kind, such as the content below

cat <<EOF | kind create cluster --name=16-bits --config=-
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  kubeadmConfigPatches:
  - |
    kind: InitConfiguration
    nodeRegistration:
      kubeletExtraArgs:
        node-labels: "ingress-ready=true"
  extraPortMappings:
  - containerPort: 80
    hostPort: 80
    protocol: TCP
  - containerPort: 443
    hostPort: 443
    protocol: TCP
EOF

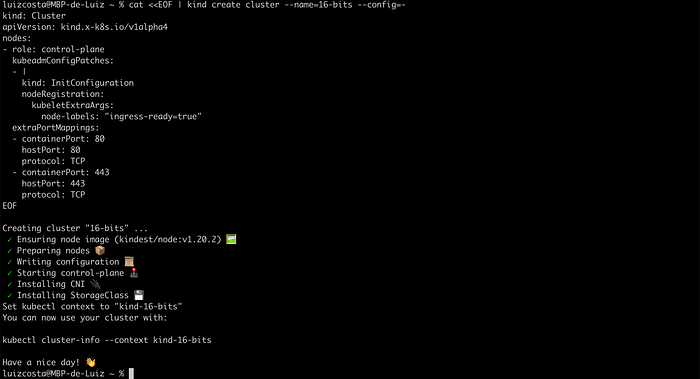

A screen like that is expected

kind cluster 16-bits

2. Check the localhost using curl and nothing should be returned

curl localhost

curl localhost

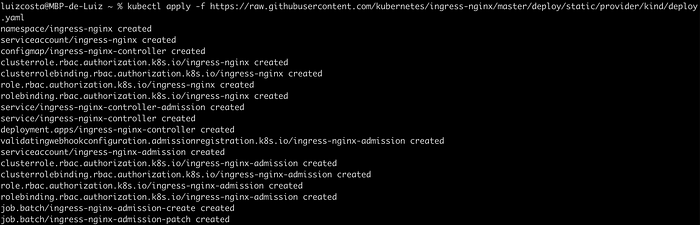

3. Create the Ingress. The Ingress will be the key piece to connect our service to external environment without use the port-forward command.

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/static/provider/kind/deploy.yaml

create the Ingress

4. Check the k8s namespaces, and the new namespace has been created, ingress-nginx.

kubectl get namespaces

kubectl get namespaces

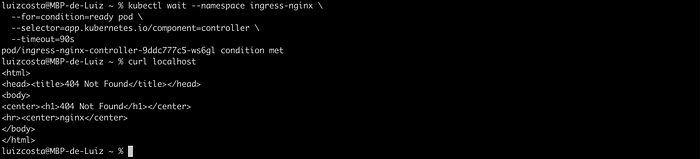

5. Check if the service has been deployed and execute a request to localhost. Now a NGINX error is returned, and it’s the expected result.

kubectl wait --namespace ingress-nginx \
  --for=condition=ready pod \
  --selector=app.kubernetes.io/component=controller \
  --timeout=90s
curl localhost

check the service

6. Create a namespace to deploy the service, for it type the command below

kubectl create namespace 16-bits

create namespace

7. Using the namespace 16-bits, deploy the service

kubectl -n 16-bits apply -f https://github.com/luizgustavocosta/16-bits-quarkus/blob/main/service-4-k8s/src/main/resources/k8s/kubernetes.yml

Service deployed

8. Check wether the service is running. First, you need to know the pod, follow the instructions below

kubectl get pods -n 16-bits

get pods

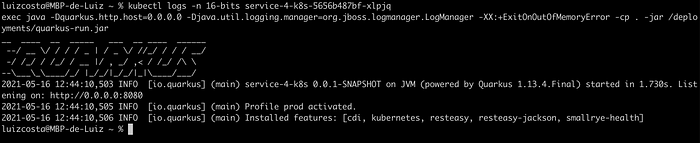

kubectl logs -n bits <pod name>

logs

9. Ingress NGINX 🖥 is on fire 🔥

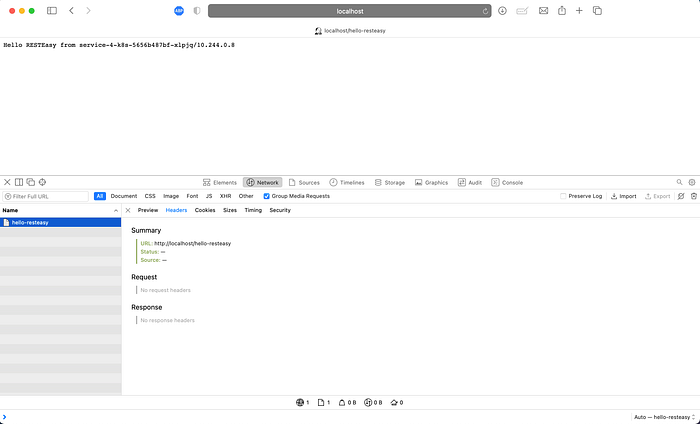

You can use cURL or your browser.

curl http://localhost/hello-resteasy

CURL

Browser

Coming up → k8s dashboard

Conclusion

Is more easy and more professional has a Ingress instead of manage the ports by myself, since this decrease the error prone.
